Tested and approved by the Egyptian Electricity Holding Company, as well as certified by Schneider Electric. These panels include:
Low voltage panels up to 6300 Amps.
PLC panels.
Power factor correction panels.
Energy poles.
Electrical Solutions
Supply Cloud is proud to announce its success in becoming the exclusive distributor for El-Meligy Factories to distribute its products in the Gulf countries. El-Meligy Electrical Industries was established in early 2003 by Engineer Mohamed Gomaa El-Meligy, and the company started by manufacturing electrical panels and busbar systems.
Get a Quote!
+(20) 1119807761
+(20) 22672926
RiserPart

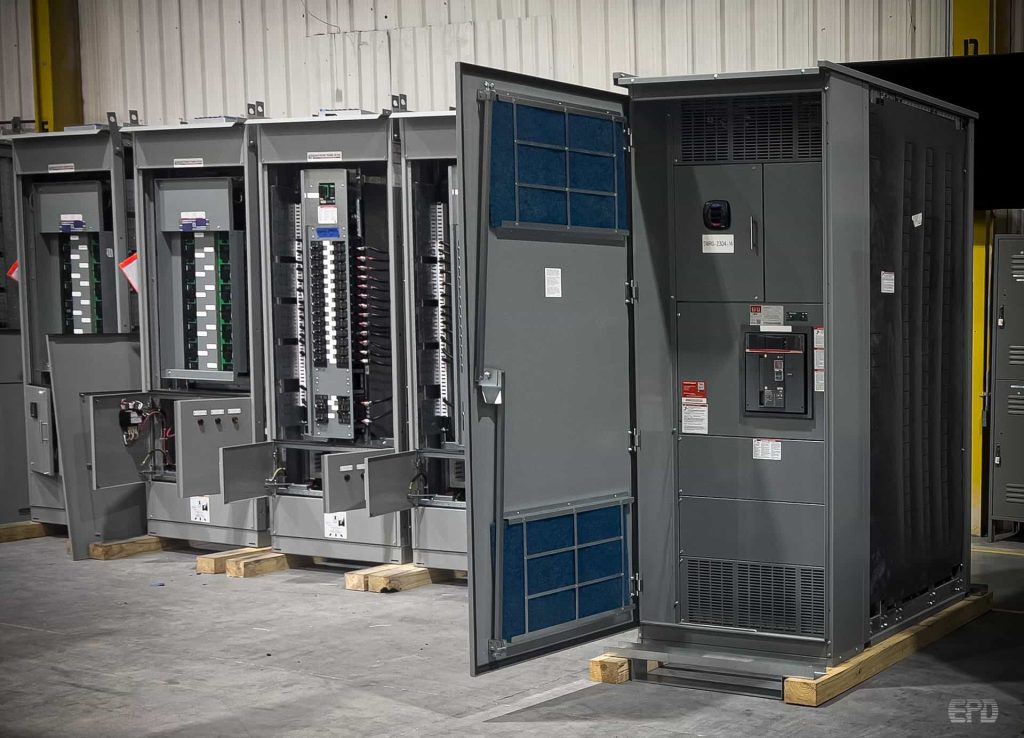

Low Voltage Panels

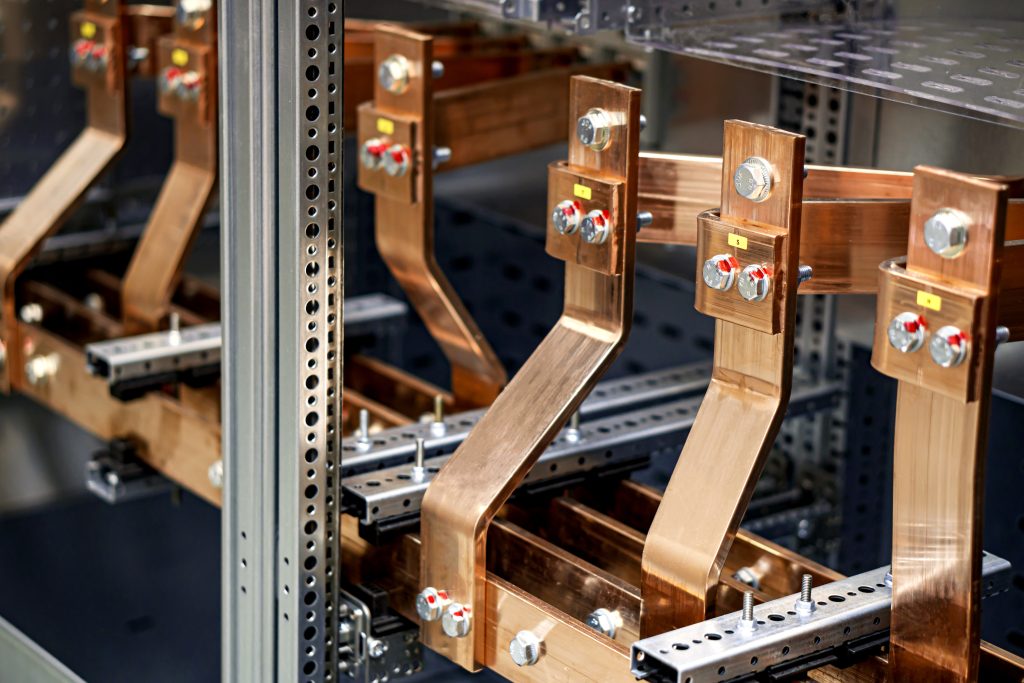

Busbar System
Features a compact design that requires less space compared to traditional cable systems. Its features include:
The busbars’ ability to absorb the heat generated during the transmission and distribution of electricity.
An improved cooling system that outperforms traditional cable systems.
High flexibility, allowing the system to be easily modified to fit any structure or configuration.
Lower resistance, reducing energy loss during transmission and distribution.
Features
AMG Busbar Trunking system, manufactured by Almeliegy Electric, offers a complete line of compatible,
sandwich-type feeder lengths and fittings. It allows maximum flexibility, ease of installation, and offers
electrical efficiency in the distribution of low voltage power for both commer cial and industrial
applications.
AMG busway has been used to supply power in thousands of installations. Our broad range of AMG
busway products feeder styles from 800-4000 A with aluminum conductors and up to 6000 A with
copper conductors. Busway are constructed in three-pole and four-pole full neutral configurations for
system voltages to 600 V and are rated to allow 100% of the current to flow continuously.
Busway installation is quick and easy. The compact, totally-enclosed design is lightweight and easy to
handle. This significant reduction in installation time can result in total installed cost for busway being
significantly lower than other distribution methods.
When you need busway, select the best AMG busway. No matter how you compare, AMG busway is your solid first choice!
sandwich construction
AMG feeder busway utilize sandwich-type construction to provide superior voltage drop characteristics, even at low power factors.
Steel housing sides and tops and bottoms have been carefully designed to reduce component
weight and minimize the hysteresis and eddy current losses.t

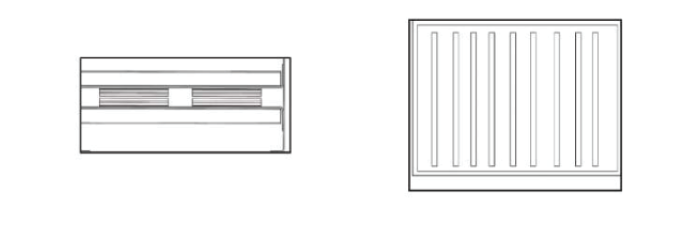

Totally Enclosed Housing
Ventilated busway depends on free air movement through aperforated housing to cool the bus bars.
Unless mounted in its preferred position (for maximum bus bar cooling) ventilated busway must be
derated. Ventilated housing also permits dirt accumulation and offers limited protection of bus bars
due to ooen ventilatina slots in the housina.
POWER TRANSMISSION

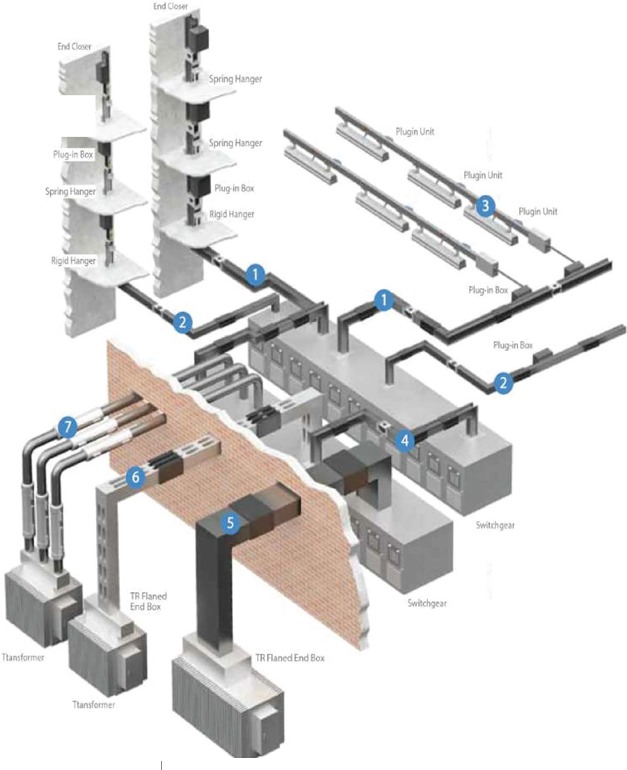

AMG busbar is intended for high power transport in harsh environments and critical buildings. The system is made of prefabricated sections adapted to all run configurations.
AMG is compliant with the standard IEC (61439-1).

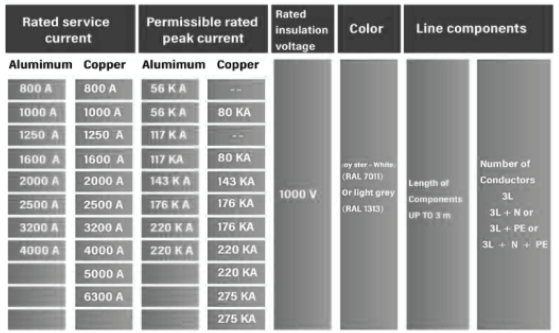

ratings are available, from 800 to 4000 A for aluminum and from 800 to 6300 A for copper.
3 to 5 conductors with identical cross-sections address the following configurations: 3L, 3L+PE,
3L+N, 3L+PEN, 3L+N+PE.
Degree of protection is IP54 Insulation voltage: 1000 Volts
AMG can be installed edgewise, flat or vertically without derating its design allows the busbar to be installed through a floor slab or fire barrier wall.
conductors
Conductors have a rectangular section with full rounded edges and are available in two versions:
Electrolytic-Copper Cu ETP 99.9% – bare copper.
The not encapsulated connection pads of the made to measure end feed units are tin plated Aluminum EN AW 6101b – tin plated along the entire surface.
Special Busway construction
This section outlines requirements for busways with features other than our standard. Special Paint
AMG busway can be provided in colors other than RAL7011 Iron grey for an additional fee. The special color requested should be specified by an RAL color code at the time of order entry. With typically lengthened lead times for special color parts, it is imperative to provide this information as early as possible in the order process so delivery commitments can be met.
Low Current Density Busway
Some customers require a lower current density busway than our standard for rigorous duty in their installation. Almeliegy electric has developed a range of busway for the most commonly requested current density of 1000 A per square inch for copper busway and 750 A per square inch for aluminum busway. If you require this current density for your installation, specify it, and we can meet your need.
Riser Plug-In Busway
Almeliegy Electric also offers an AMG plug-in busway specifically designed for installation in riser closets of high-rise buildings. This plug-in busway has a plug-in door on the front side that faces out into the room.
The back of the busway, that faces the wall, is blanked off with a feeder bus side rail. This design provides a plug-in busway ideally suited for riser cabinets and gives the customer only the necessary plug-in openings.
Splash Resistant Busway
Some indoor busway is subject to occasional water exposure, such as roof leaks or sprinklers. While this application does not require the full protection of outdoor busway, additional protection is needed for the indoor busway. The splash resistant feature is tested to the International IEC 60529 standard and is rated as IP54. This rating specifies protection from dust and water (“splashed from all directions with limit ingress permitted”).
This feature is available as an option with indoor plug-in and feeder busway. To maintain the UL label, however, an IP54 rating product needs to be sized as a “Low Current Density Busway.”
Through this partnership, Supply Cloud aims to enhance the presence of El-Meligy products in the Gulf markets and meet customer needs by providing innovative and high-quality electrical solutions, with a focus on safety and performance efficiency.
